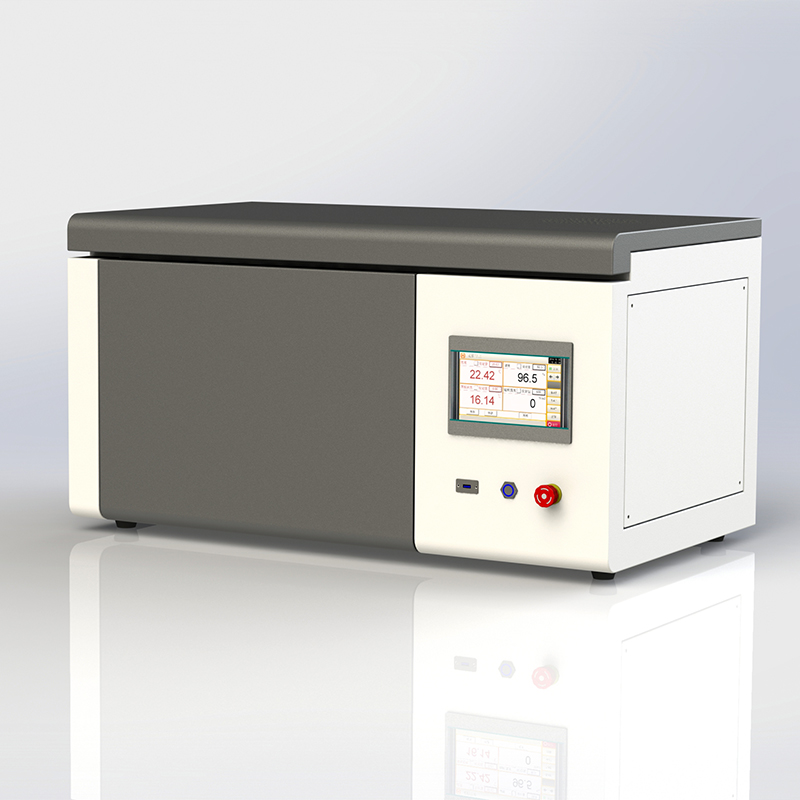

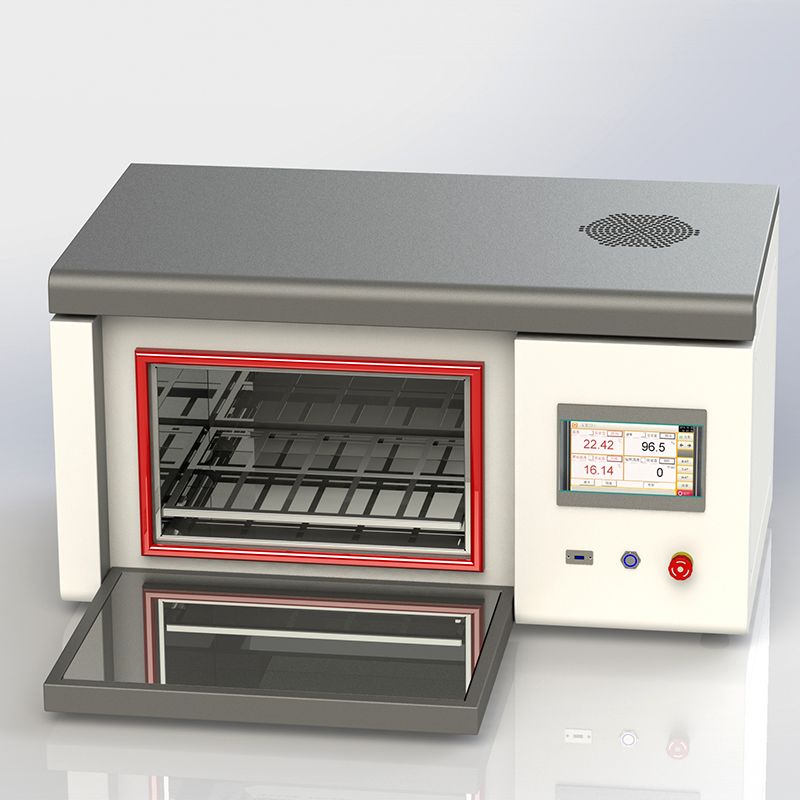

Desktop xenon lamp aging test chamber XD-1000 Rongjida

I. Application Fields: The desktop xenon lamp aging test chamber is a compact, simple and cost-effective xenon lamp aging test chamber that can reproduce the damage caused by full-spectrum sunlight and rain. It adopts low-power air-cooled xenon lamps and, through a mirror reflection system, ensures that the irradiation energy inside the test chamber is large enough and evenly distributed. It is equipped with a standard violet epitaxial filter, allowing ultraviolet light below the natural sunlight cut-off point to pass through (equivalent to sunlight without passing through the atmosphere), which is used to provide faster and more severe test conditions for artificial climate accelerated aging tests. The operator can freely set various parameters required for the test (such as irradiation energy, irradiation time, black panel temperature, etc.) through the touch controller, and can check the operating status of the machine at any time. The operating parameters during the test can be directly downloaded to the computer via the USB interface. The desktop xenon lamp aging test chamber is small in size and easy to install. Samples can be conveniently horizontally installed on the flat sample tray. It is a great choice for laboratories with limited budgets or those that only have occasional testing needs. Ii. Main Performance Characteristics: The desktop xenon lamp aging test chamber complies with international standards for full-spectrum xenon lamp tubes, which most truly reproduce the full-spectrum natural sunlight. The lamp tubes are air-cooled (not water-cooled), which is more economical, efficient and easier to maintain. Filter: Selecting a filter can simulate various environments, including direct sunlight and sunlight transmitted through glass Windows. The performance of the filter does not decline with the increase of usage time. Therefore, there is no need to replace the filter during normal operation. Xenon lamps have a service life of up to 1,500 hours and are inexpensive, with replacement costs being only one fifth of those of imported ones. The replacement of the lamp tube is simple. 4. Alarm protection functions: Over-temperature, large irradiance error, and door opening shutdown protection. Iii. Main Technical Parameters 1. Light source: 1.8kw original imported air-cooled xenon lamp or 1.8KW domestic xenon lamp 2. Filter: Ultraviolet extended filter (daylight filter or window glass filter can also be selected) 3. Effective exposure area: 1000cm ² (9 samples of 150mmx70mm can be placed at a time) 4. Rated lifespan of the lamp tube: 1500 hours 5. Irradiance setting range: 30W/m ² to 100W/m ² (300nm to 400nm) 6. Irradiance monitoring method: 340nm or 420nm or 300nm - 400nm (choose one before ordering) 7. Blackboard temperature setting range: Room temperature +20°C to 90 °C (The setting value varies depending on the ambient temperature and irradiance of the usage environment. 8. Inner/outer box material: All stainless steel plate 304/ powder coating 9. Dimensions: 950mmx570mmx540mm (length x width x height) 10. Net weight: 93KG(including 130KG in wooden crates) 11. Power Supply :220V, 50 or 60HZ(choose one) 12. Maximum current and power :12A-2.5KW(with imported tubes) /25A-3.5KW (with domestic tubes)
