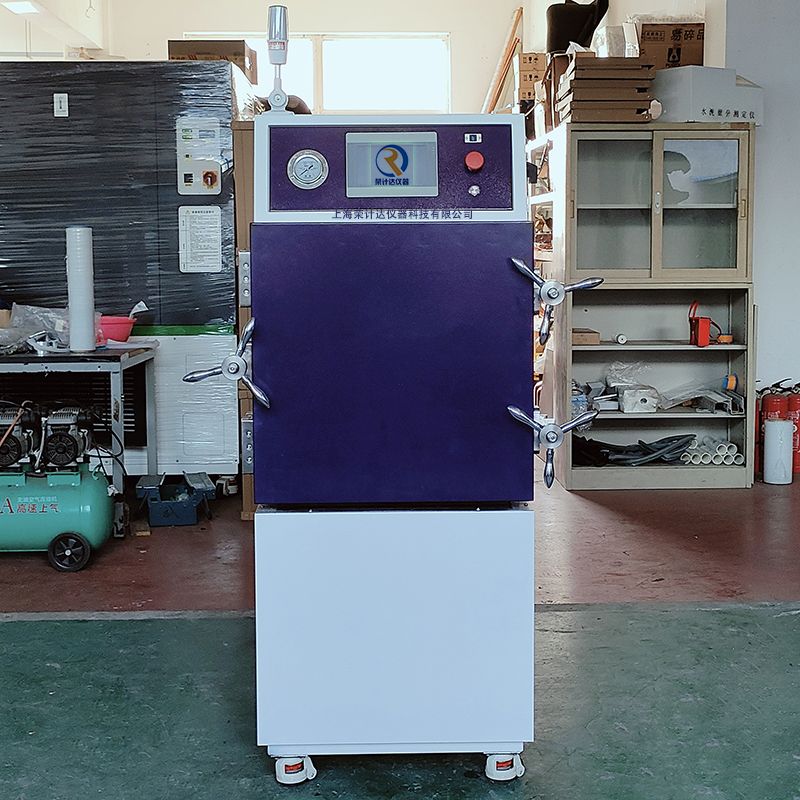

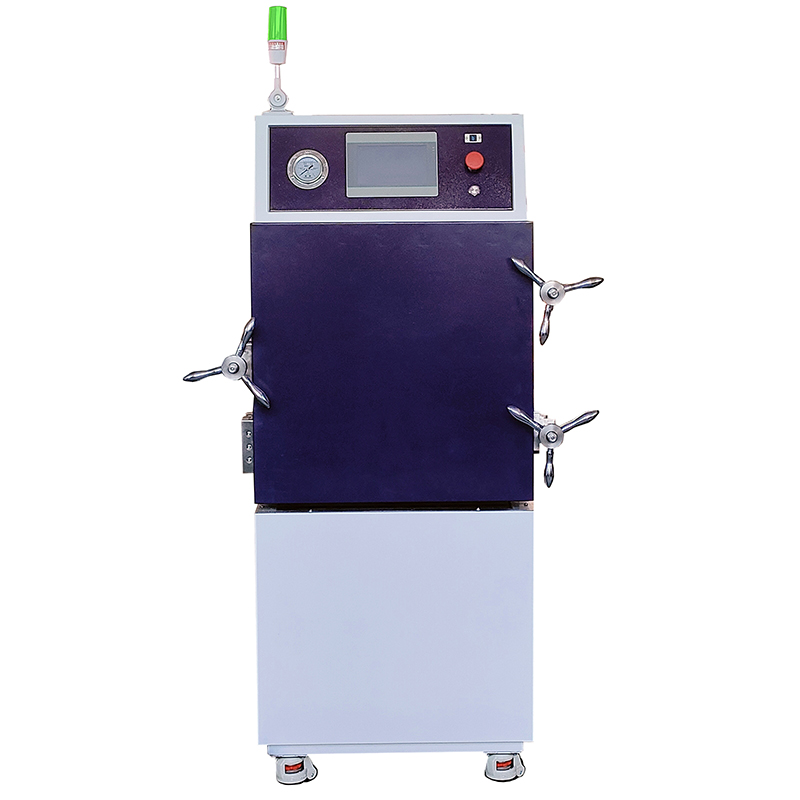

High-voltage accelerated aging test chamber PCT Rongjida

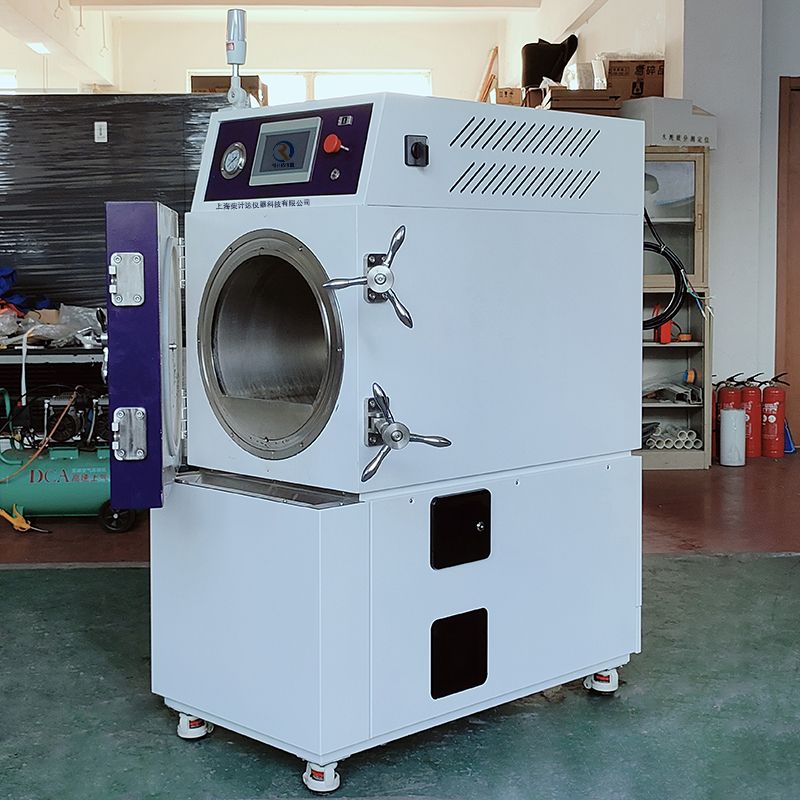

I. Product Introduction The high-pressure accelerated aging test chamber is a specialized test chamber mainly used to simulate the performance of materials under high-temperature, high-pressure and high-humidity environments. The inner liner of the PCT aging chamber adopts an arc design and complies with national safety container standards. It is suitable for industries such as defense materials, aerospace materials, electronic components, semiconductors, and circuit boards. Ii. Technical Parameters 1. Box dimensions: φ400×480mm (dimensions can be customized) 2. Dimensions: 720×920×1900mm 3. Temperature range: 100℃ to 130℃ (saturated vapor temperature) 4. Temperature fluctuation: ±0.5℃ 5. Temperature uniformity :2℃ 6. Humidity range: 80%R.H to 100%R.H 7. Humidity fluctuation ±1.5%R.H 8. Humidity uniformity: 3.0%R.H 9. Pressure range :0.2 to 3kg/cm² (0.05 to 0.294MPa) 10. Heating time: Approximately 40 minutes to rise from room temperature to 145 °C Iii. Product Features 1. The circular stainless steel inner box structure can prevent condensation and dripping during tests, meeting the standards for industrial safety containers. 2. Pressure-regulating door lock with good sealing performance. 3. Precise structural design, low water consumption, and each water addition can last for 200 hours continuously. 4. Safety door design: Tests cannot be conducted without closing the door. 5. Overpressure protection: Automatic exhaust and pressure relief in case of overpressure. 6. Over-temperature protection: When the temperature is too high, the indicator light will sound an alarm and the test will be stopped. Iv. Applicable Standards GB/T10586-1989 Technical Conditions for Wet Heat Test Laboratories. GB2423.3-93(IEC68-2-3) Constant damp heat test. MIL-STD810D Method 502.2 GJB150.9-8 Temperature and Humidity test. GB2423.34-86, MIL-STD883C Method 1004.2 Temperature, Humidity and high Pressure combined cycle Test.
