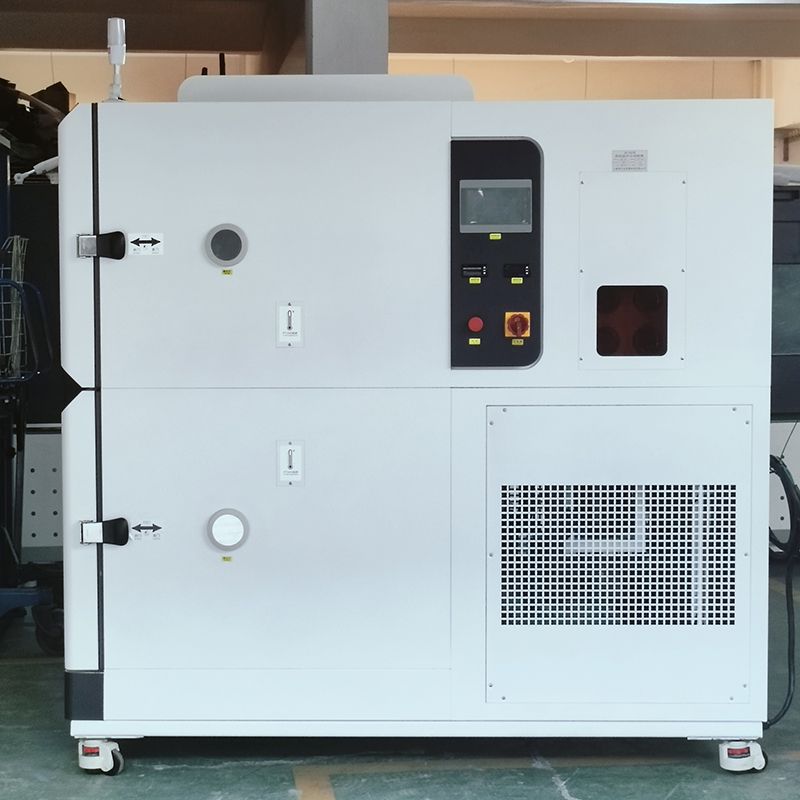

High and low temperature shock test chamber GDC-4027 Rongjida

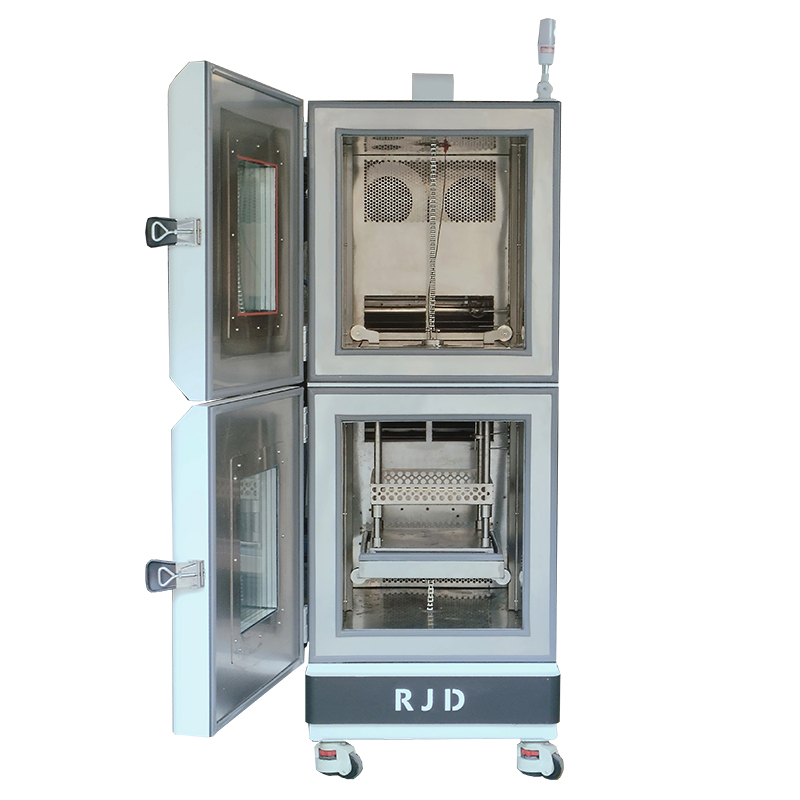

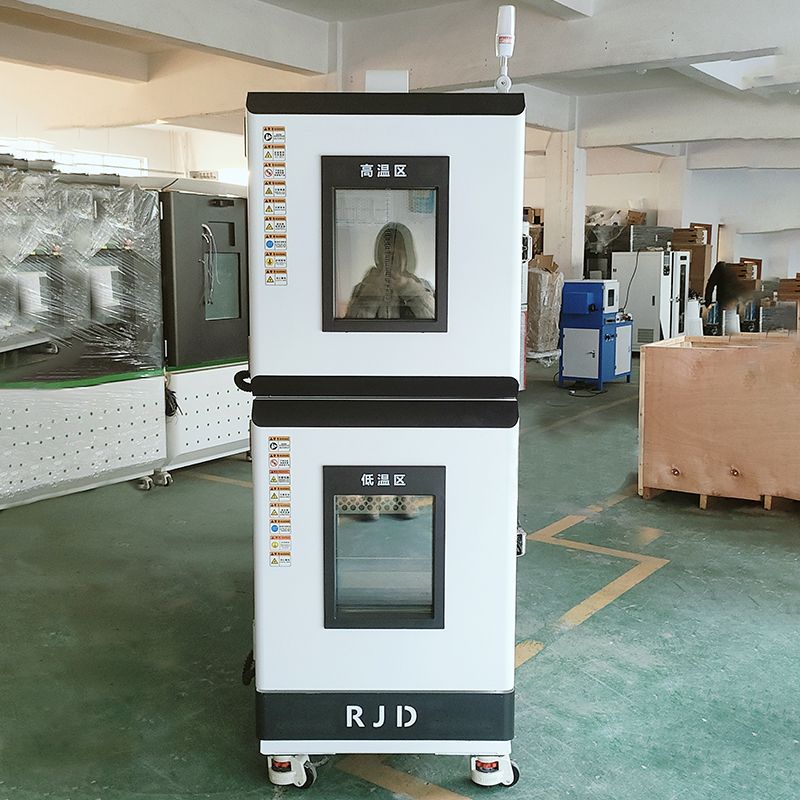

Product application The high and low temperature shock test chamber is used to test the extent to which materials can withstand continuous environments of extremely high and low temperatures in an instant, so as to detect the physical changes caused by thermal expansion and contraction of the samples in the shortest time. It is applicable to the adaptability tests of simulation specimens in the material industries such as metals, plastics, rubber, electronic and mechanical products, aerospace, energy materials, medical chemicals, etc. under the conditions of rapid changes in the surrounding atmospheric temperature, and provides reliability tests for the safety tests of electronic components Features 1. Pneumatic control is adopted, and the basket switches and moves between high and low greenhouses. 2. Short conversion time, short temperature recovery time, and fast temperature change speed 3. It adopts the two-box method, with a new generation of appearance design. The overall structure is compact and the volume is small, which improves the temperature uniformity in the working chamber. 4. It can be used not only for thermal shock tests but also for high-temperature or low-temperature tests alone. 5. It is equipped with high-end universal rollers for easy movement within the laboratory. 6. Vacuum double-layer heating observation window with built-in lighting. 7. Multiple data interfaces, SD card storage, USB output, and remote operation via a computer APP. Technical parameters 1. Effective volume of the basket: 27L 2. Specifications and dimensions: Outer width, depth and height: 750×2100×1900mm, inner width: 520×600×600mm 3. Basket size: 300×300×300mm 4. High-temperature pre-temperature range: 60℃ to +180℃ 5. Low-temperature preheating range: -10℃ to -60℃ 6. Temperature shock range: -40℃ to +120℃ 7. Basket conversion time: ≤10 seconds 8. Temperature recovery time: ≤5 minutes 9. Temperature fluctuation: ≤±0.5℃ 10. Temperature uniformity: ≤2℃ 11. Temperature deviation: ≤±2℃ 12. High-temperature preheating time: 20℃ to 180℃≈30 minutes 13. Low-temperature pre-cooling time: 20℃ to -60℃≈75 minutes 14. Total power: ≈12kw 15. Operating power: ≈8KW Operating voltage: AC220 50Hz Specification, basket size, external dimensions 27L 300×300×300 750×2100×1900 80L 400×400×500 1200×2500×1800 150L 500×500×600 1500×2600×1850 210L 600×500×700 1700×2650×1900 510L 800×800×800 2500×3200×2100 1000L 1000×1000×1000 3000×3500×2100 The high-temperature pre-temperature range for temperature parameters is 60℃ to +200℃ The low-temperature preheating range is -10℃ to -80℃ The impact range is -40 ℃, -50 ℃, -65℃ to 120 ℃, 150℃ as required The temperature recovery time is no more than 5 minutes The temperature fluctuation is ≤±0.5℃ The temperature uniformity is ≤2℃ Temperature deviation: ≤±2℃ The movement mode of the basket is pneumatic The time for basket conversion is no more than 10 seconds Safety protection Leakage, short circuit, over-temperature, motor overheating, compressor overpressure, overload, overcurrent protection/controller power-off memory
